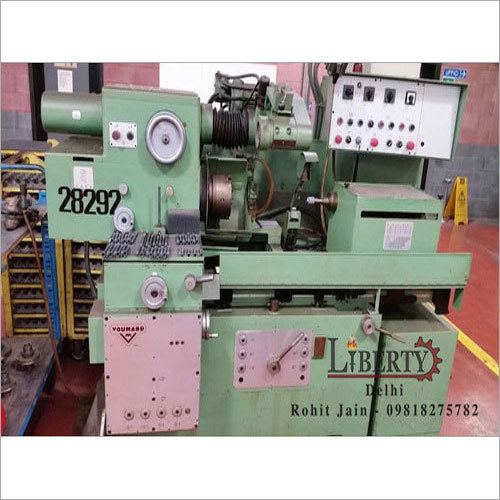

Voumard 3A Internal Grinder

Voumard 3A Internal Grinder

7200 USD ($)

Product Details:

X

Price And Quantity

  • 1 Piece
  • 7200 USD ($)

Product Description

  • Internal Grinding Diameter - 3 mm to 80 mm
  • Center Height - 200 mm
  • Max. Table Travel - 300 mm
  • Max.Spindle Speed - 120,000 rpm
  • Max. Outside Diameter of Job - 400 mm
  • Work-Head Speeds - 350 rpm to 1200 rpm
  • Max. Diameter inside Protective Cover - 240 mm
  • Spindle Diameter - 165 mm
  • Diameter of Cup Wheel of Face Grinding - 75 mm
  • With Face Grinding Attachment.

Total of 3 different Spindles available for Internal Grinding.

  • Hydraulic Chuck for Job Clamping.
  • Automatic Hydraulic Wheel Dresser.
  • Electrical drawings etc. available of the machine.
  • Complete with coolant tank & pump.
  • Machine is in excellent working condition.
