Product Description

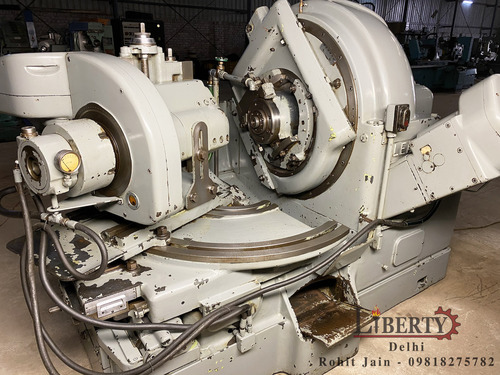

Gleason (USA) Straight Bevel Gear Generator in excellent working condition.The model of this machine is Number 12 and it is a 2-Tool type machine. The technical details are as follows -

Make - Gleason (USA)

Model - Number 12

Max. Diameter Capacity - 431 mm (17")

Max. Module - 8.5 module (3 DP)

Extreme Ratio - 10 : 1

Longest Cone Distance - 305 mm (12")

Max. Face Width - 90 mm (3.5")

Max. Length of Stroke - 96 mm (3.75")

- Machine is complete with Gauge set for Tool setting.

- Complete with Change Gears, Operating Manual, etc.

- Machine is in excellent working condition

Video Link -  https://youtu.be/Ph1E0eq-hoY
