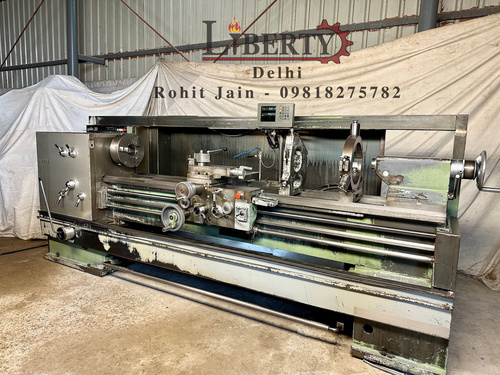

Dean Smith And Grace 1609 Lathe Machine

Product Description

Make - Dean Smith & Grace (England)

Model - Type 1609 x 48

Center Height - 215 mm

Max. Length of Job - 1300 mm

Max. Job Diameter over Bed - 430 mm

Max. Job Diameter over Cross-Slide - 225 mm

Max. Job Diameter in Gap - 625 mm

Spindle Speeds - 20 rpm to 1600 rpm

Bed Width - 335 mm

Chuck Diameter - 250 mm

Spindle Bore - 52 mm

- Equipped with Taper Turning Attachment.

- Graduations are in both Metric (mm) and Imperial (inches).

- Machine is in excellent working condition.

Video of The Machine -

https://youtu.be/EkXSz93A3Ls
